V-move 20t
V-Move 20T Semi Trailer Mover — Moves 55,116 lb
In stock

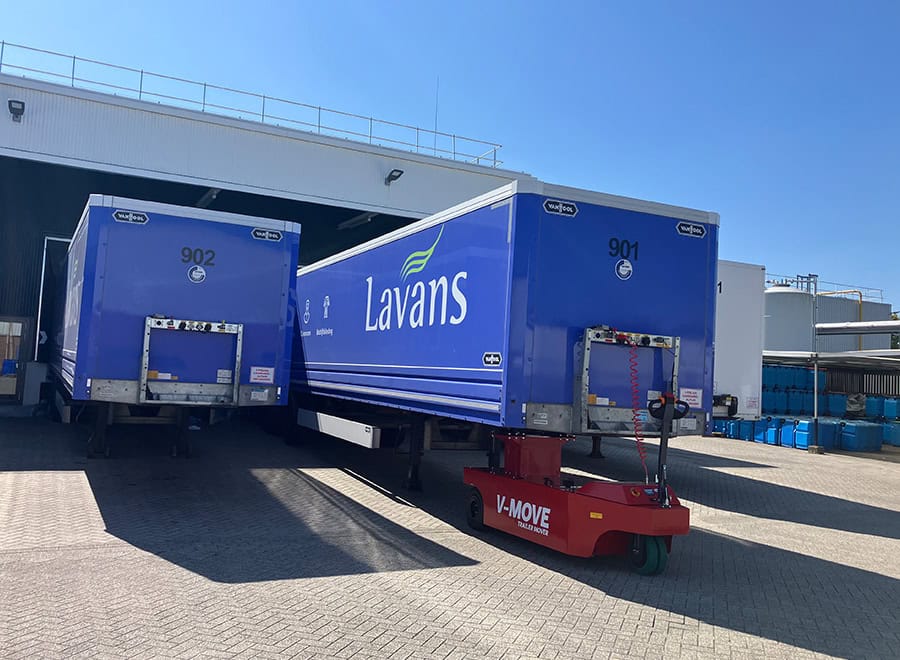

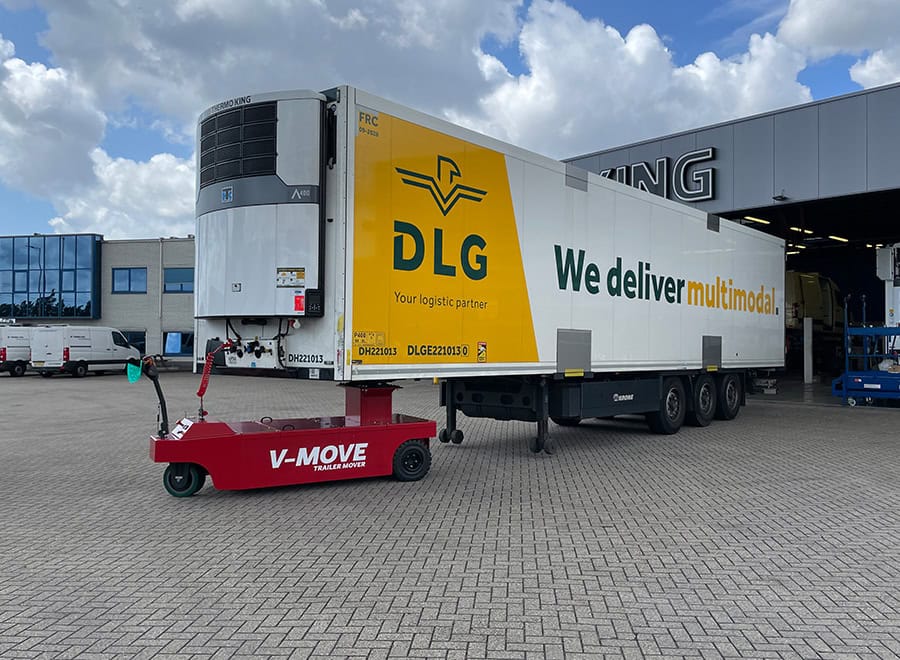

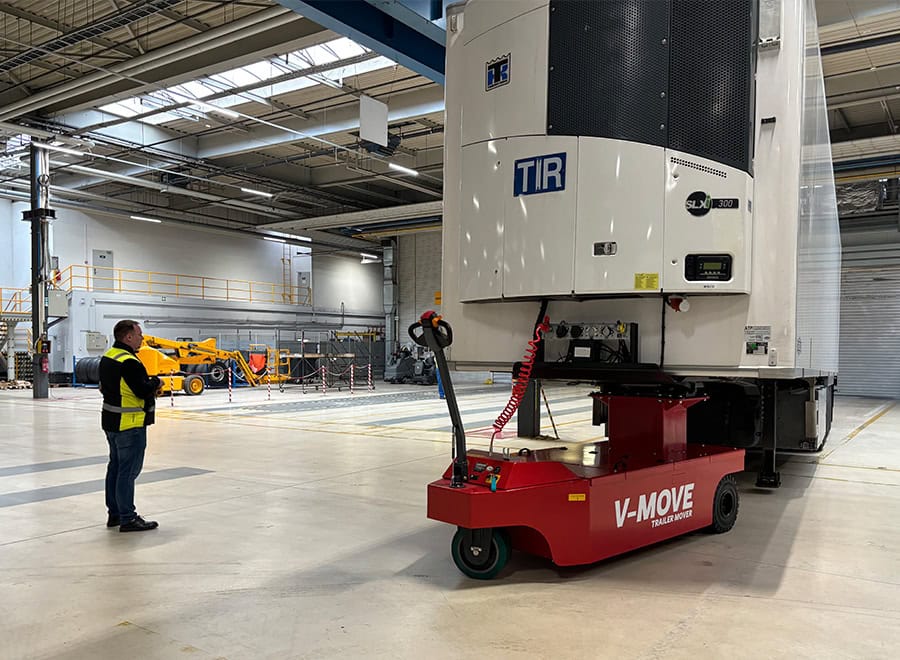

The V-Move 20T is a highly engineered, walk-behind battery-powered electric semi trailer mover built to move empty or light semi trailers weighing up to 55,116 lb, depending on tongue weight and traction conditions — with a published manufacturer’s move rating of 20,000 kg (44,092 lb). It lifts loads up to 5,000 kg (11,023 lb) using a hydraulic fifth wheel — with a published manufacturer’s lift rating of 4,500 kg (9,920 lb).. Powered by two 5 kW AC electric motors, it replaces a diesel terminal tractor for yard spotting, dock work, and trailer positioning — with zero emissions, near-silent operation, and no CDL or license required to run it.
Verhagen Leiden has manufactured the V-Move line in the Netherlands since 2004 and Xerowaste is the authorized North American dealer. Every 20T comes with a 2-year limited warranty and service support within your area.
Do not click on the video if you don't agree with the cookie policy of Youtube
For more videos, check our Youtube channel and Verhagen's Youtube channels, with link below.
A Zero-Emission Alternative to Terminal Tractors and Yard Trucks

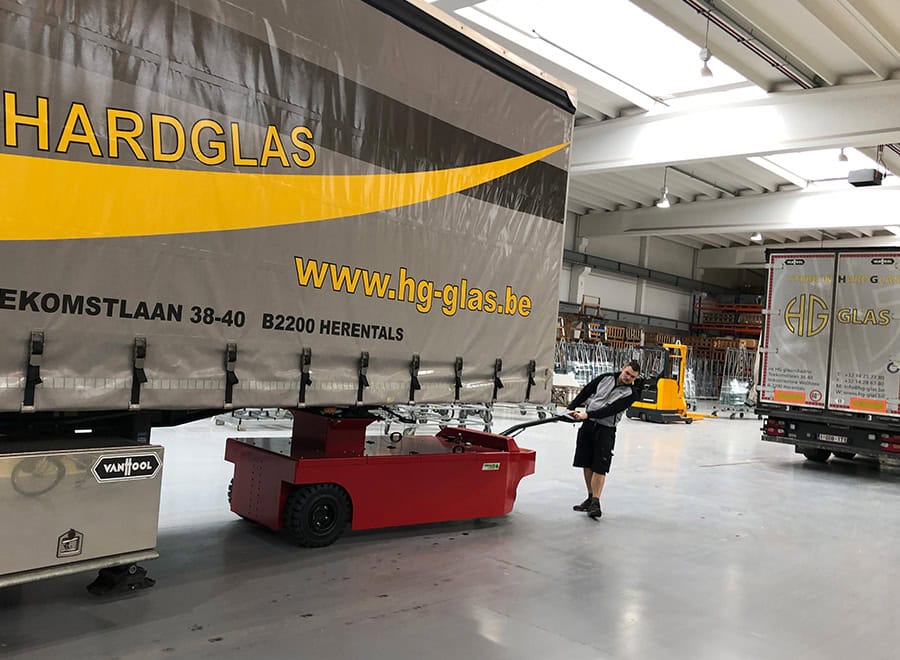

Also known in the industry as a terminal tractor, yard spotter, yard dog, yard goat, yard hostler, mule, or prime mover, the V-Move 20T does the same job — shunting loaded semi trailers around a yard or dock — at a fraction of the capital cost, operating cost, energy use, and space requirement of a full-size shunt truck, even an electric one. One operator walks alongside the unit using a tilting steer handle or operates it via remote control, so there's no cab, no CDL requirement, and a much smaller footprint for manoeuvring in tight yards.
Key Features
| FEATURE | DESCRIPTION |
|---|---|
| Dual AC Drive Motors | Two 5 kW (10 kW combined) maintenance-free AC motors — flatter torque curve, smoother starts, lower total cost of ownership than DC. |
| Hydraulic Lift & Coupling | 11,023 lb / 5,000 kg lift capacity with hydraulic coupling for fast, secure trailer hookup. Two lift heights are available and the standard and heavy-duty king-pin sizes for 5th wheels are available. |
| No License Required | Safe for walk-behind operation with no commercial license needed. |
| Indoor/Outdoor Rated | Zero emissions means it's cleared for indoor dock use as well as outdoor yard work, rain or shine. Rated IP54. |
| Safety Lighting | Includes LED front and back lighting (programmable), sound alarm for moving (programmable), deck lighting for 5th wheel, and foot path lighting. |
| Turn Safety | The tug slows down automatically in turns. |
| Traction Tires | Deep-tread, aggressive tires for grip on asphalt, concrete, packed soil, and gravel. Options available for winter ice and snow use. |
| 8-Hour Runtime | Standard 8 × 6 V 230 Ah AGM, maintenance-free batteries. Most customers upgrade to the optional 8 x 48V 30Ah (240Ah total) LiFePO4 lithium package — the higher voltage delivers more usable power, alongside a longer runtime and optional faster opportunity charging. |
| Trailer Brake Release & Active Trailer Braking (Optional) | The optional compressor allows the trailer’s air brakes to be quickly released or fully applied when pushing a button. This feature is attaching to the RED hose. Additionally, a special braking system is available that uses the trailer brakes to generate extra braking force on inclines or at loading docks. Attaching to the yellow or blue hose, it connects to the trailer to actively and automatically brake when you let off the tug throttle or push the stop button on the tug. |
| Remote Control (Optional) | Operate a safe distance from the unit for added flexibility in tight or hazardous spots. |
The larger heavy-duty 40T trailer mover can move 130,000 lb or 58,967 kg. If you are looking to move small boat and camper trailers, try our very popular V-Move XL
V-move Semi Trailer Movers in the News
- Back in 2016, Popular Mechanics picked up on the Verhagen battery-powered walk-along semi-trailer mover as the first of its kind: Popular Mechanics Magazine - New Technology
- For Ports and large distribution center applications, see how a collaboration with Verhagen Leiden in Europe has developed a fully-automated V-move 40T to move semi-trailers into and from loading docks to reduce capital costs, address the labour shortage, lower energy consumption, and reduce space needed to manoeuvre. Follow this exciting forefront: https://v-tron.nl/en/ceyas/ AND at: https://www.tno.nl/nl/newsroom/insights/2024/10/ceyas-yard-automation/
See our tire and wheel page for advice on winter usage.
Also, we suggest you read our blog article on semi trailer tugs: Semi trailer positioning tug.
Combined with Verhagen Leiden, we have over 45 business years of material handling experience and are ready to help you.
V-move 20T Heavy-Duty Battery-Powered Semi Trailer Mover FAQ
The standard battery pack is 8 x 6V 230Ah AGM, deep-cycle maintenance-free batteries. Most customers upgrade to the optional 8 x 48V 30Ah LiFePO4 lithium pack — the higher voltage delivers more usable power alongside faster opportunity charging. The LifePO4 batteries are warrantied for 5 years and can charge cycle for 4,000+ times. Read our blog post on Lithium batteries for more information.
Yes, with the optional compressor attachment, it can do both. It can release or apply air brakes at the push of a button. The optional active trailer braking uses a dedicated computer system to automatically apply and release the trailer’s own brakes for extra stopping force when slowing down, when on inclines, or at loading docks.
V-Move 20t Semi-Trailer Mover Specifications
| Push or Pull | 25 MT / 55,116 lb |
| Weight Carry | 5 MT / 11,023 lb |
| Max Gradient | 10% |
| Power (min) Power (max) | 10 kW / 13.4 hp 17 kW / 22.8 hp |
| Drawbar pull: Force (max) | 19,000 Newtons / 4,271 lbf |
| Speed | 0 - 5 km/hr / 0 - 3.1 mph |
| Voltage | 48 volts |
| Motor Type | Twin AC motors - maintenance-free |
| Battery Type | 8 x 6 volt 230Ah AGM maintenance-free |
| Charger | UL/CSA approved charger included - CEC rated |
| Tug Weight | 1,700 kg / 3,748 lb |
| Size (lwh) | 311x120x100 cm / 123x47x39 in |
The tug is super easy to use and the payback is 6 months. It is pretty well a no brainer.
We are a large property management company with a need to transport heavy waste bins up through our parkade each week. After years of using an aging tractor, we recently purchased a V-Move tug to:
• Prevent driving an unlicensed ‘vehicle’ (old tractor) in the back lane, which is a huge liability, especially if we were involved in any type of accident with another vehicle or pedestrian.
• Reduce pollution, especially for the driver and other occupants of the parkade.
• Eliminate purchasing, transporting and storing gasoline on site inside our parkade.
• Eliminate dangerous conditions our staff previously faced while operating the tractor.
• Reduce operating costs (fuel and servicing) and downtime.
The service from Xerowaste Solutions has been excellent, with quick response time and clear communications. So far, the V-Move tug has delivered exactly as promised, reducing operating costs while improving safety. We even bought the snow plow attachment and look forward to putting it to use!
Michael was great to work with and went out of his way to accommodate what we needed.
The tug has performed excellent and has made moving the trash/recycling bins a breeze and we are saving a bit on labor.
| brand | V-Move |
|---|---|
| manufacturer | Verhagen Leiden B.V. |
